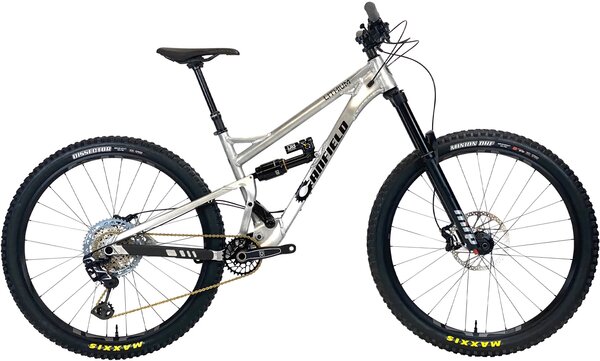

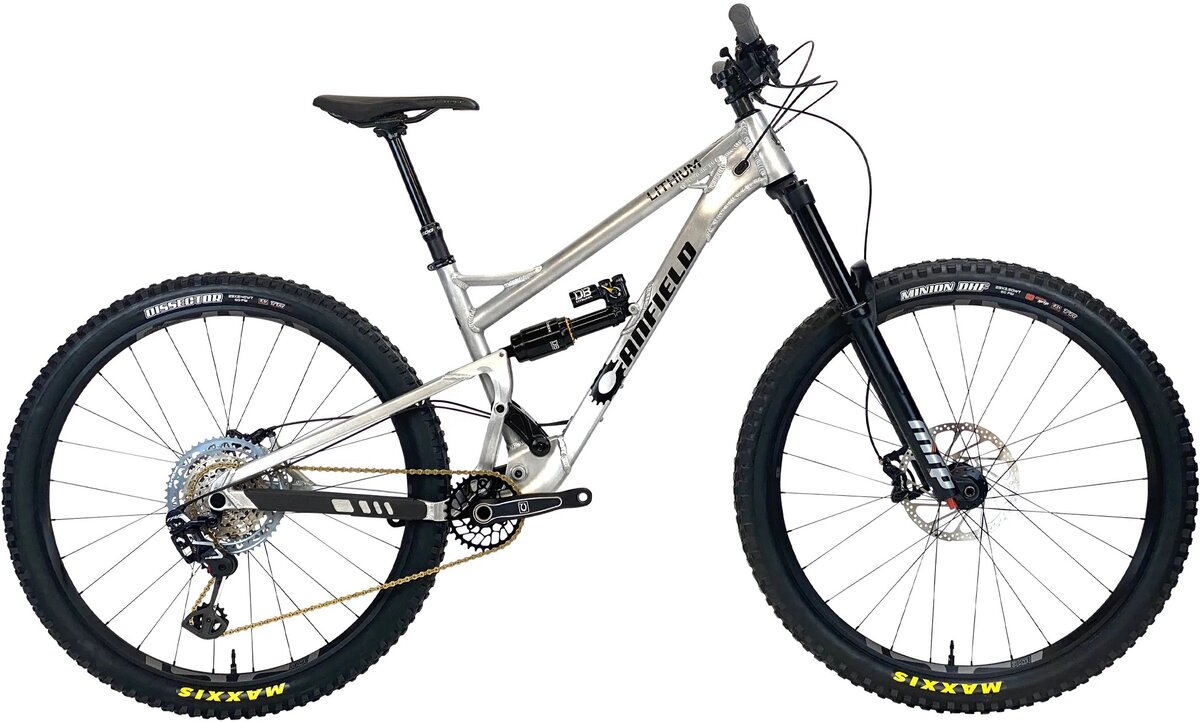

Meet the new maniac on the mountain. Introducing the Canfield Lithium, an all-new long-travel 29er worthy of wearing a skull on the head tube. Designed to destroy big descents with reckless abandon, unafraid of the effort required to earn them. From enduro stages to bike park laps and backcountry adventures, the Lithium is a big-wheeled warrior ready for anything the mountain throws your way thanks to the secret sauce of the patented Canfield Balance Formula™ suspension.

• 29” All-Mountain/Enduro
• Patented Canfield Balance Formula™ Suspension
• 163mm/151mm rear travel
• Internal cable routing
• Forged clamshell bottom bracket assembly
• Redesigned rear-triangle with forged one-piece vertical stays
• One-piece upper and lower links
• Boost Spacing
• Custom CBF Chainstay Protector
• Water-bottle mount
• Replaceable rear derailleur hanger
• Fork: MRP Ribbon Air
• Rear Shock: Cane Creek DB Kitsuma Air
• Wheels: Ethirteen LG1
• Tires: Maxxis Minion DHF 2.5 / Dissector 2.4
• Drivetrain: TRP TR-12
• Cassette: e*thirteen Helix Race
• Cranks: Canfield (multiple lengths)
• Chainring: AbsoluteBlack 30t Round
• Bar: Canfield Carbon 800mm(width)/35mm(clamp)
• Stem: Canfield 40mm (length)/35mm(clamp)
• Grips: Lizard Skins Charger Evo w/ Canfield Lock-Ring
• Brakes: TRP Trail Evo
• Rotors: 203mm/180mm F/R
• Seatpost: SDG Tellis 150mm (S/M) or 170mm (L/XL)
• Saddle: SDG Canfield Custom
• Sealant: Trucker Co. Cream II
• 7005 aluminum with CNC 7075 links
• Internal cable routing with interchangeable machined ports
• Shock Specs (Metric):
-163mm travel: 230mm x 65mm, (20mmX8mm/40mmX8mm hardware)
-151mm travel: 230mm x 60mm, (20mmX8mm/40mmX8mm hardware)
-All frames/bikes are specced with full-stroke shocks
• Optimized for air or coil shocks
• Recommend fork length: 160mm – 180mm
• Recommended fork offset: 44mm
• Tapered Headtube 44mm upper/56mm lower
• 15mm pivot bearings (6902)
• Bottom bracket: 73mm, threaded
• Seatpost: 30.9mm, stealth dropper compatible
• Seatpost clamp: 35mm
• Rear dropouts: Boost 148mm x 12mm, Canfield axle included
• Max rear tire size: 29x2.5/27.5x2.8
• Removable ISCG tabs: ISCG 05
• Brake mount: Post Mount 180
• Seatpost max insertion: 250mm(S), 265mm(M), 305mm(L), 340mm(XL)
• Weights (medium):
-Frame w/ hardware: 7.7 pounds
-Frame w/ shock: 8.8 pounds
-Complete (carbon wheels, air shock): 31.8 pounds
-Complete (aluminum wheels, coil shock): 33 pounds
